What tools do I need to complete this project?

You will need a drill/driver, clamps, tape measure, level, router, jigsaw, and standard hand tools.

Are the measurements provided in both metric and imperial?

Yes, the PDF includes all dimensions and instructions in both metric and imperial units.

-60%1 / 10

Kids Corner Bunk Bed

PDF plan3D model

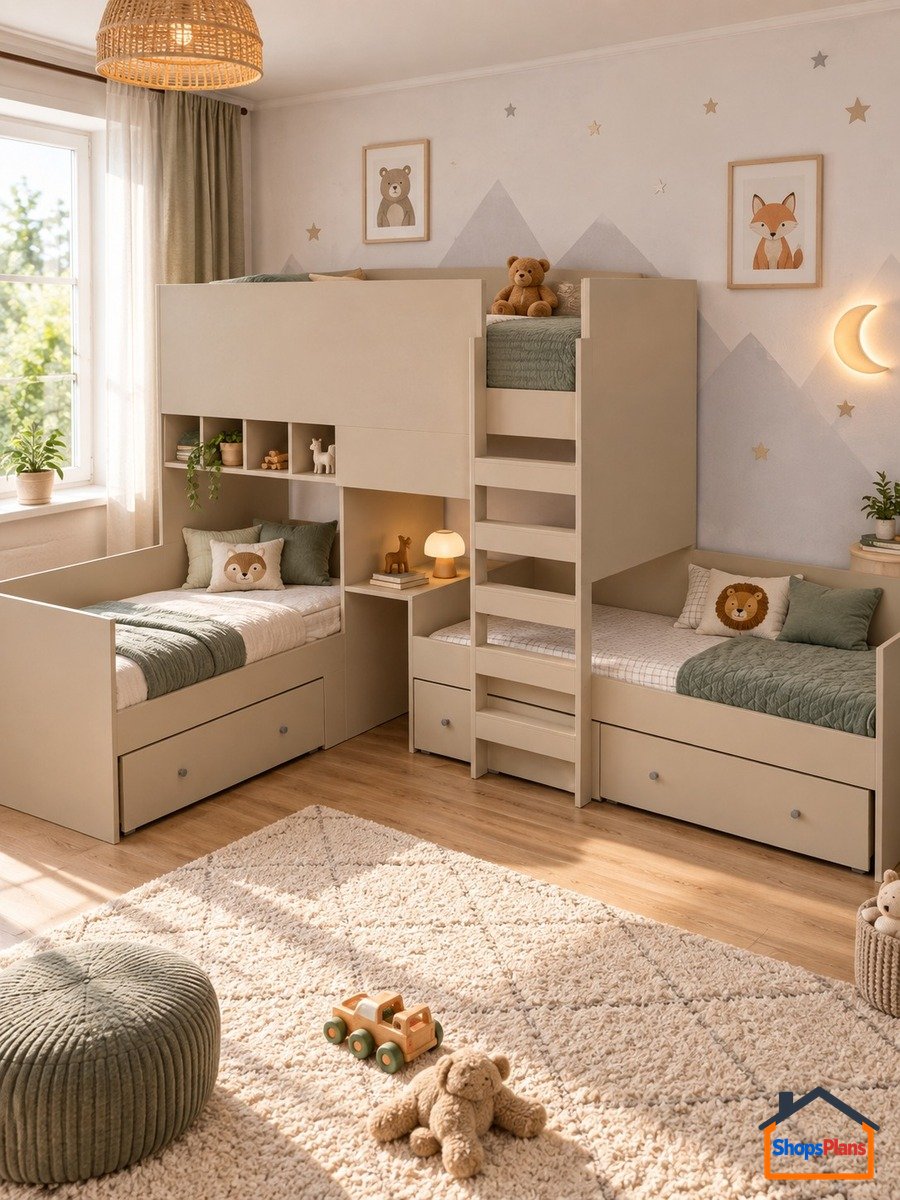

Create a smart sleeping arrangement with this corner bunk bed design. These plans help you build a reliable frame that saves valuable floor space.

$2.93~~$7.32~~-60%

One-time payment. The file is yours to keep.

Ask about this plan

Online checkout opens soon. Ask us and we will help you get this plan.

Specifications

Article
Category: Other plans
Dimensions: 10′6″ × 6′7″ × 5′11″3.2 × 2 × 1.8 m
Format: PDF, instant download
Units: Millimetres and inches
PDF languages: EnglishPortuguêsEspañolDeutschFrançaisItaliano

About this plan

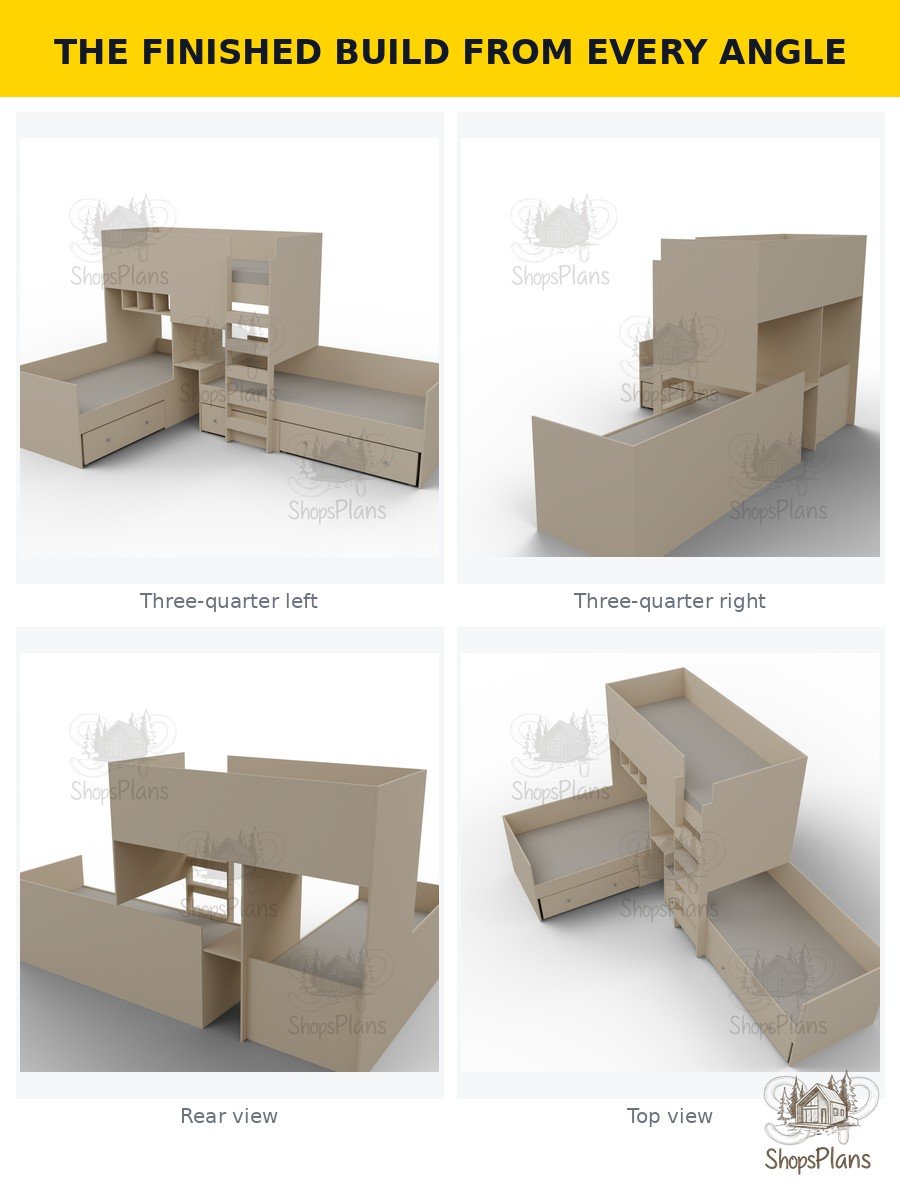

Transform a shared bedroom into an organized retreat with this unique furniture design. By utilizing a corner configuration, you gain significant room for other activities while providing comfortable sleeping quarters for children or teenagers. The finished frame measures 3200 x 2000 x 1800 mm (126 x 78.7 x 70.9 in), making it a substantial addition to any home.

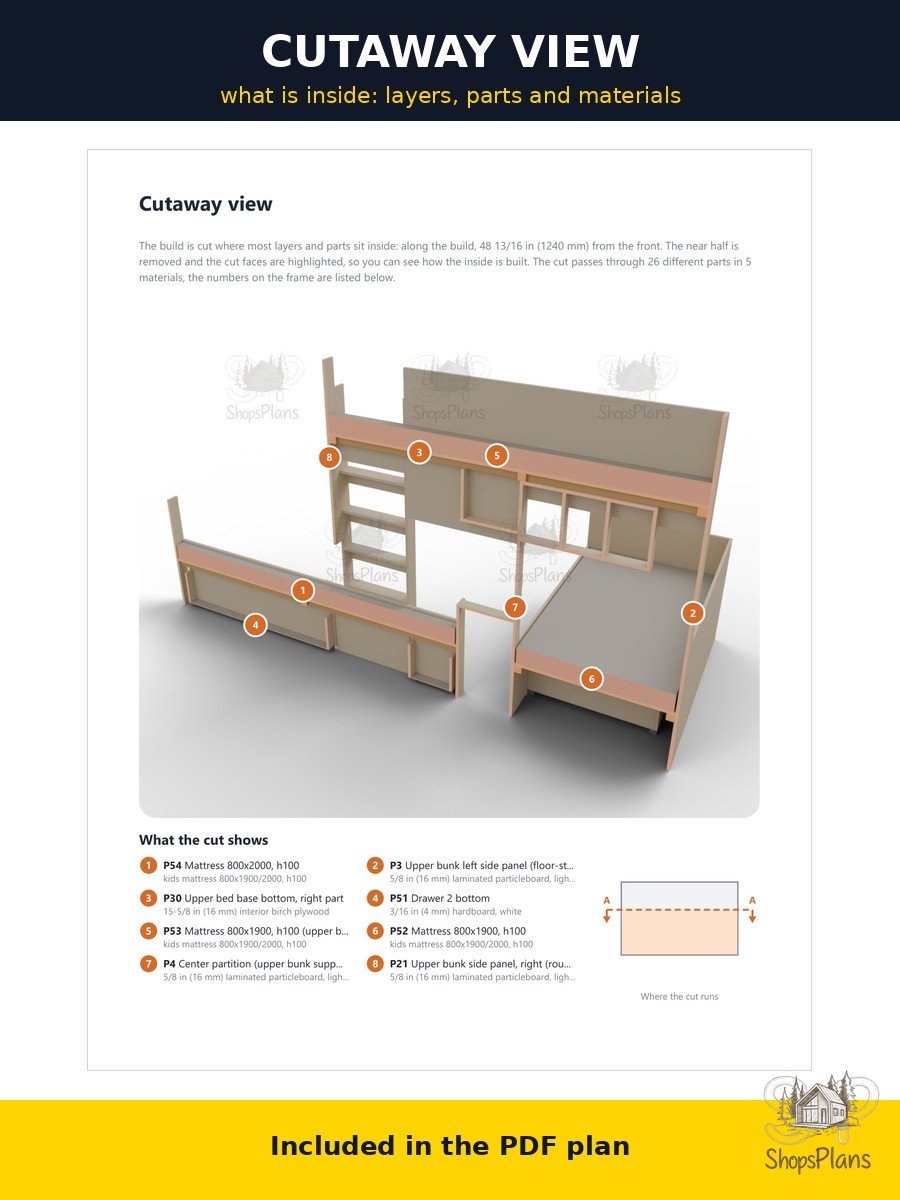

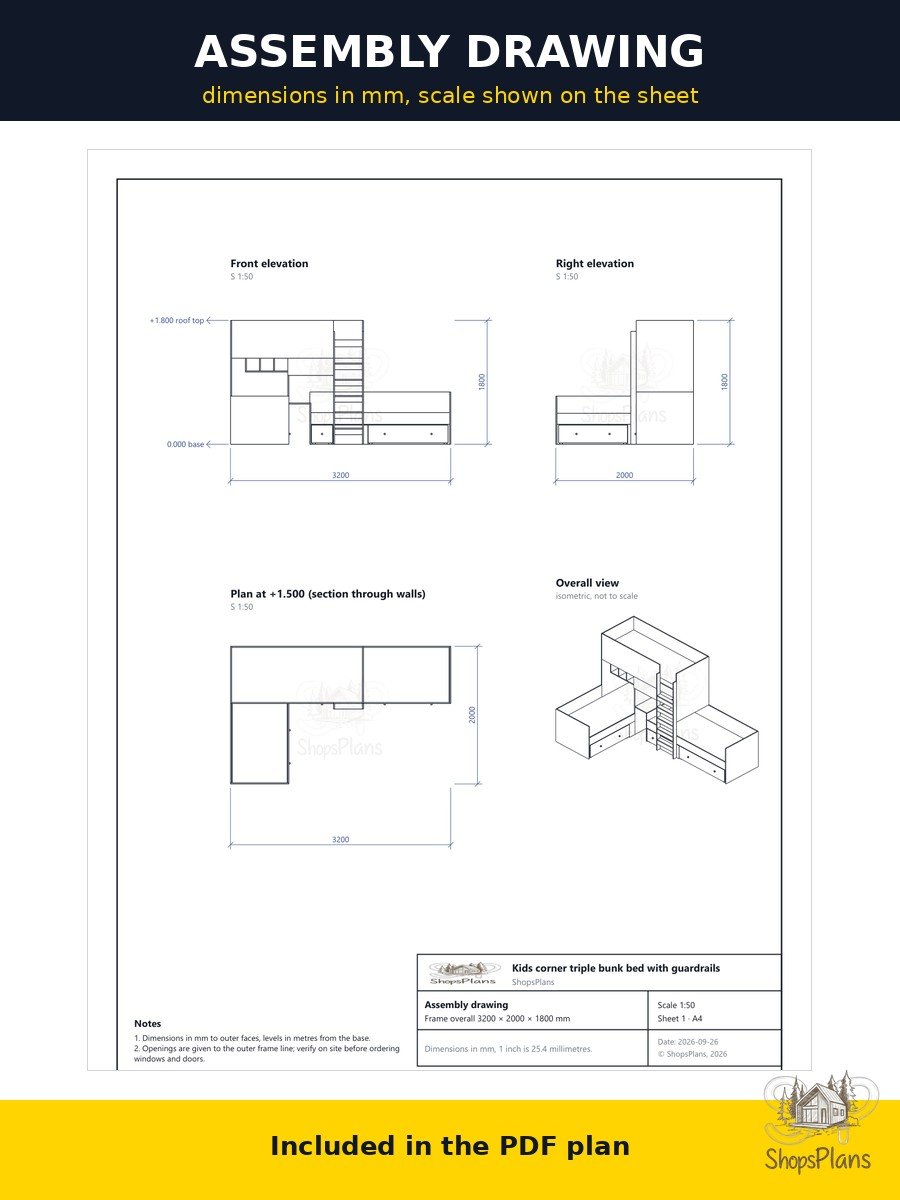

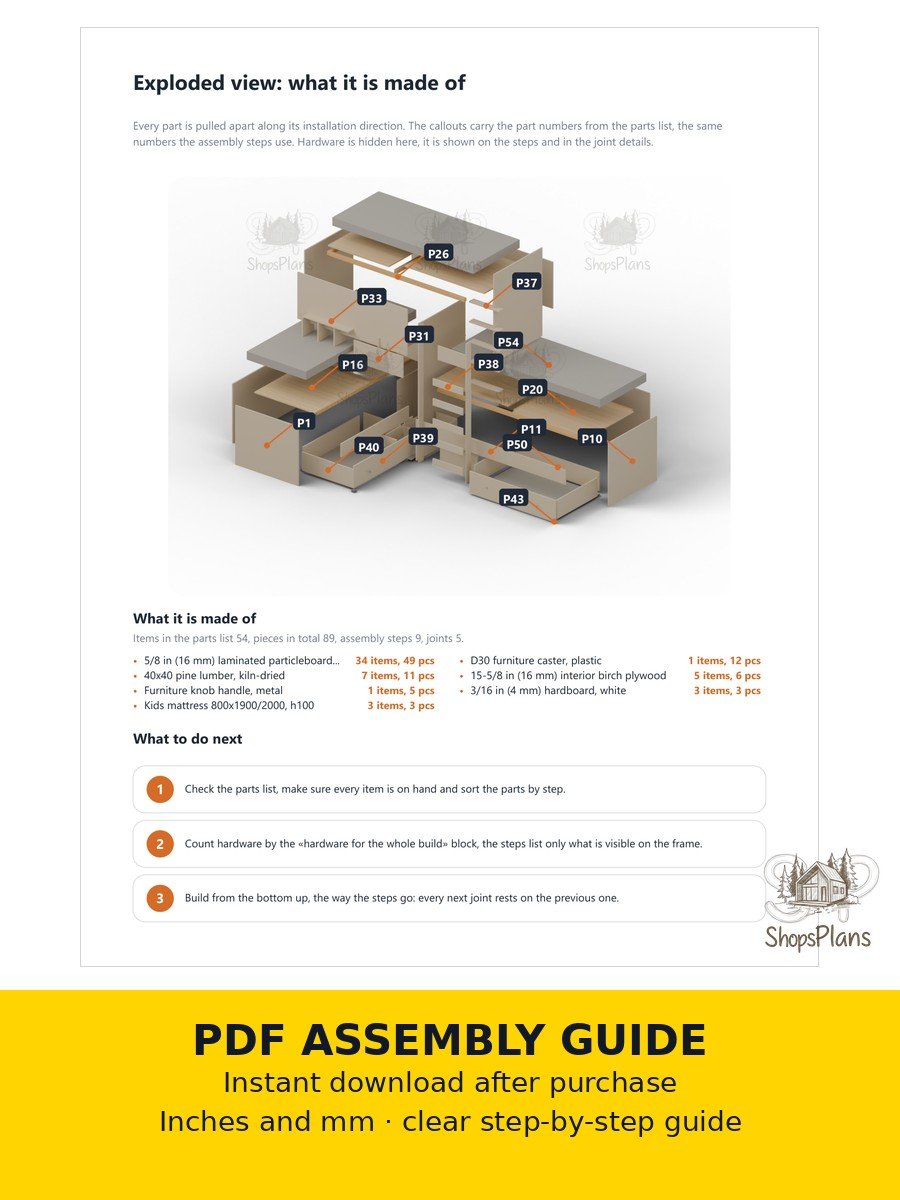

Our comprehensive guide simplifies the woodworking process through clear, professional documentation. You receive a complete assembly drawing featuring cross sections, a full parts list with precise cut dimensions, and a detailed fastener schedule. The document also includes a step-by-step 3D sequence to ensure every connection is secure and stable.

This project is designed for those comfortable with standard hand tools, a drill/driver, router, jigsaw, clamps, tape measure, and level. Whether you are an experienced maker or a dedicated hobbyist, the instructions provide the clarity needed to complete the build with confidence. We also include helpful advice on selecting mattress sizes and guidance on how to disassemble the unit if you need to move it later.

Your purchase provides an immediate digital PDF download. Every measurement is provided in both imperial and metric units to accommodate your preferred workflow. Start your next project today and enjoy the satisfaction of crafting high quality furniture for your family.
